兼容各类型超快激光器
敞开式工作区兼容多轴配置
定制化夹持及辅助治具
自定义上下料位置
集成CCD定位及读码功能
匹配终端系统的集成软件

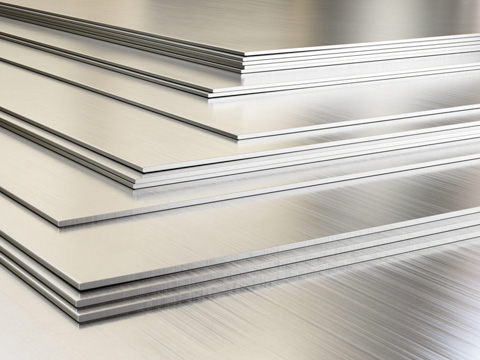

激光平切_镍钛板

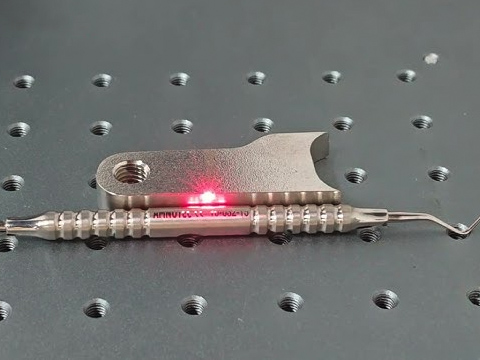

激光打标_手术钳

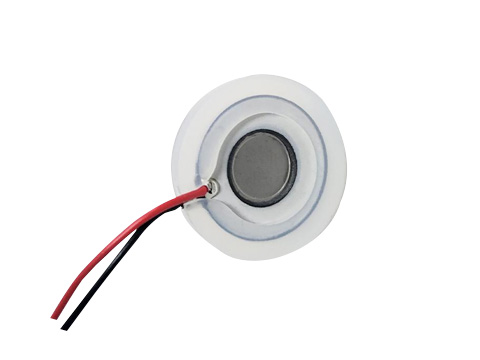

激光钻孔_雾化器板

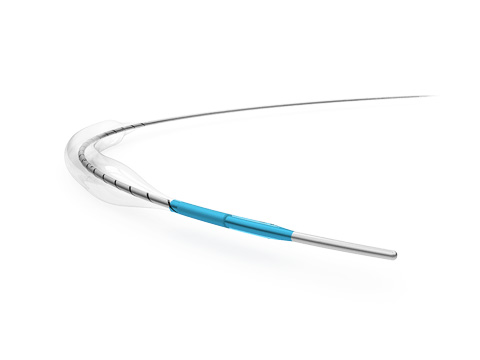

激光打孔_球囊导管
激光打标_手术器械
| Laser source | Femtosecond laser | Picosecond laser | |||
| Laser wavelength | 1030nm | 515nm | 1064nm | 532nm | 355nm |
| Laser power | 5w~20w | 2w~10w | 10w~60w | 5w~30w | 2w~20w |
| Pulse width | <800fs | <12ps | |||
| Frequency | 100KHz~1000KHz | ||||
| Maximum processing area | 300mm×300mm | ||||
| Galvoscanner range | 50mm×50mm~300mm×300mm | ||||
| Positioning method | Coaxial visual positioning | ||||
| System processing accuracy | ±20um | ||||
| CCD positioning accuracy | ±15um | ||||
| XY axes Repeatability accuracy | ±0.002mm | ||||
| Z-axsi positioning accuracy | ±0.005mm | ||||
| Air pressure | 0.5MPa~0.7MPa | ||||
| Power supply | 220V single-phase/ 50Hz | ||||
| Cooling methods | Water cooled | ||||
| Maximum outer dimension | 1200mm×1700mm×2100mm | ||||
| Stage weight | 750KG | ||||
| Ambient temperature | 23℃±2℃ | ||||
| Ambient humidity | <70% RH without condensation | ||||
取栓支架
颅内扩张支架
弹簧圈栓塞
微导管
微导丝
抽吸导管
扩张球囊导管
颈动脉支架
椎动脉支架
腔静脉滤器
冠状动脉支架
球囊
金属裸支架
药物涂层支架
可降解支架
药物涂层球囊
球囊扩张导管
心脏瓣膜
封堵器
雾化片
三维标测导管
消融导管
穿刺针
活检钳
